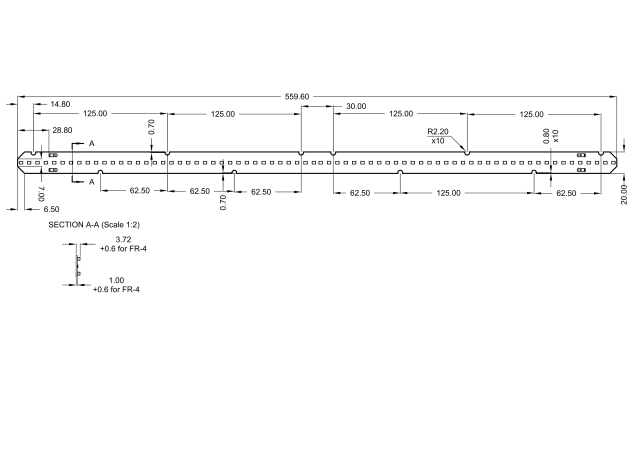

Linear Led Module 2 feet 560x20mm 36V
Linear Led Module 2 feet 560x20mm 36V
Max efficiency [lm/W] 204 lm/W
Voltage [Vf] 72 V
Length [mm] 560 mm
Width [mm] 20 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

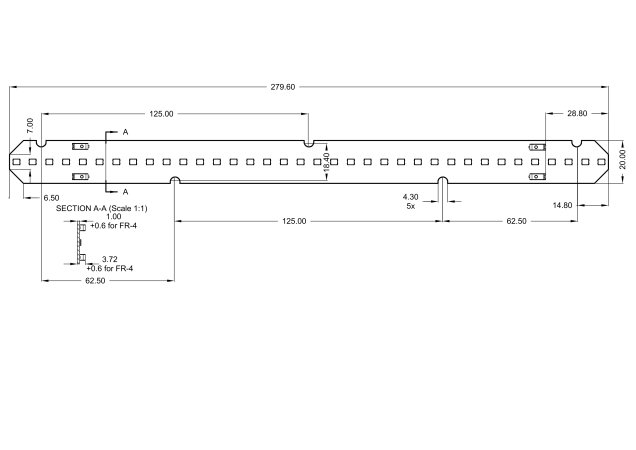

Linear Led Module 1 feet 280x20mm 36V
Linear Led Module 1 feet 280x20mm 36V
Max efficiency [lm/W] 204 lm/W
Voltage [Vf] 36 V
Length [mm] 280 mm
Width [mm] 20 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

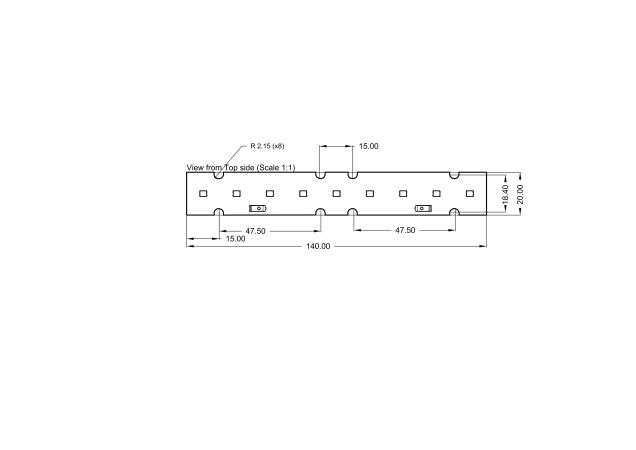

Linear Led Module 0,5 feet 140x20mm 18V
Linear Led Module 0,5 feet 140x20mm 18V
Max efficiency [lm/W] 204 lm/W
Voltage [Vf] 9 V
Length [mm] 140 mm
Width [mm] 20 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

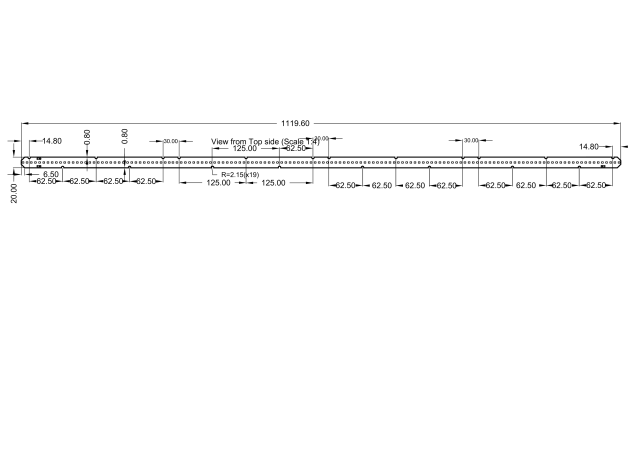

Linear Led Module 4 feet 1120x20mm 36V
Linear Led Module 4 feet 1120x20mm 36V
Max efficiency [lm/W] 204 lm/W
Voltage [Vf] 144 V
Length [mm] 1120 mm
Width [mm] 20 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

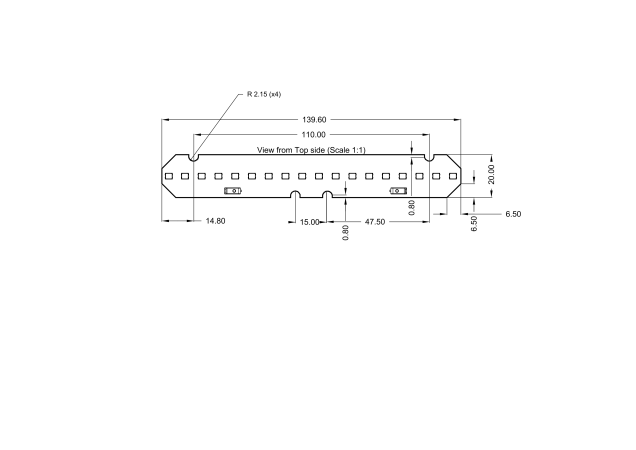

Linear Led Module 0,5 feet 140x20mm 36V
Linear Led Module 0,5 feet 140x20mm 36V
Max efficiency [lm/W] 204 lm/W
Voltage [Vf] 18 V
Length [mm] 140 mm
Width [mm] 20 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

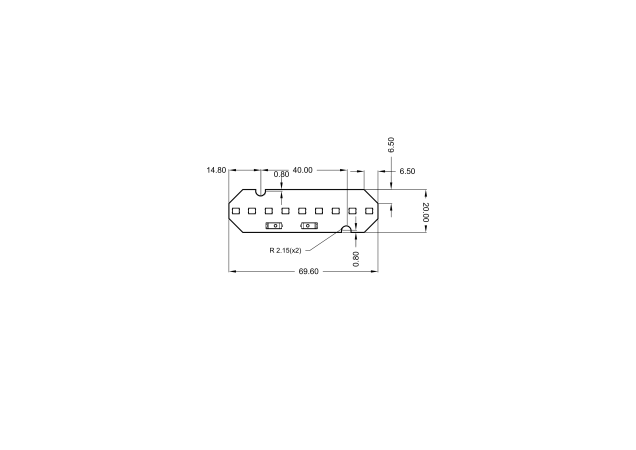

Linear Led Module 0,25 feet 70x20mm 36V
Linear Led Module 0,25 feet 70x20mm 36V
Max efficiency [lm/W] 204 lm/W
Voltage [Vf] 9 V
Length [mm] 70 mm
Width [mm] 20 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

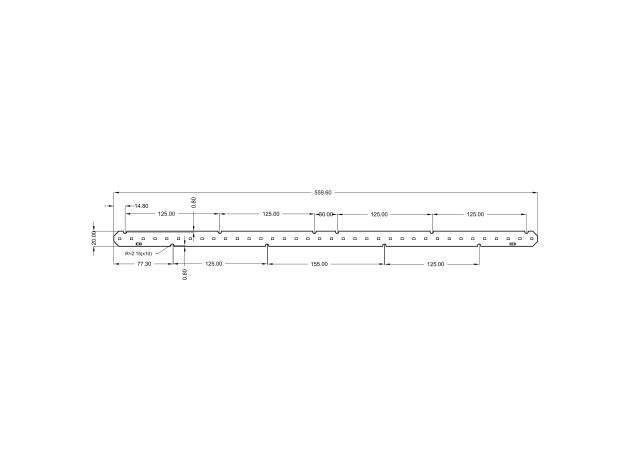

Linear Led Module 2 feet 560x20mm 18V
Linear Led Module 2 feet 560x20mm 18V
Max efficiency [lm/W] 204 lm/W
Voltage [Vf] 36 V
Length [mm] 560 mm
Width [mm] 20 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14
Linear Led Module 1 feet 280x20mm 18V
Linear Led Module 1 feet 280x20mm 18V
Max efficiency [lm/W] 204 lm/W
Voltage [Vf] 18 V
Length [mm] 280 mm
Width [mm] 20 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

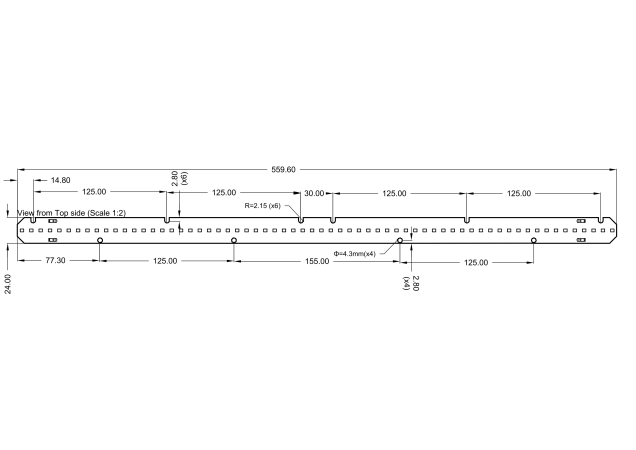

Linear Led Module 2 feet 560x24mm 12V
Linear Led Module 2 feet 560x24mm 12V
Max efficiency [lm/W] 201 lm/W
Voltage [Vf] 24 V
Length [mm] 560 mm
Width [mm] 24 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

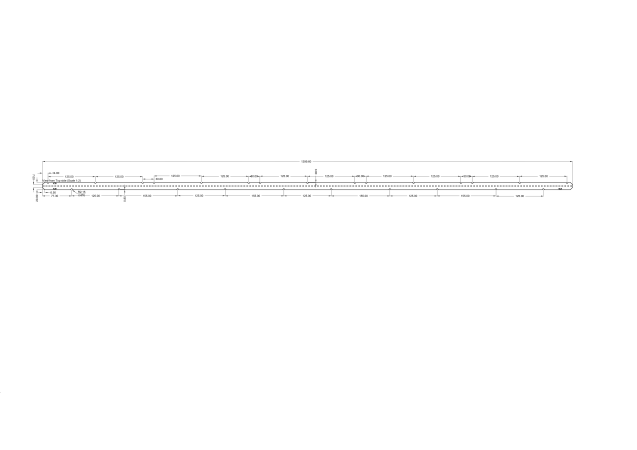

Linear Led Module 2,5 feet 1400x20mm 36V
Linear Led Module 2,5 feet 1400x20mm 36V
Max efficiency [lm/W] 204 lm/W
Voltage [Vf] 180 V
Length [mm] 1400 mm
Width [mm] 20 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

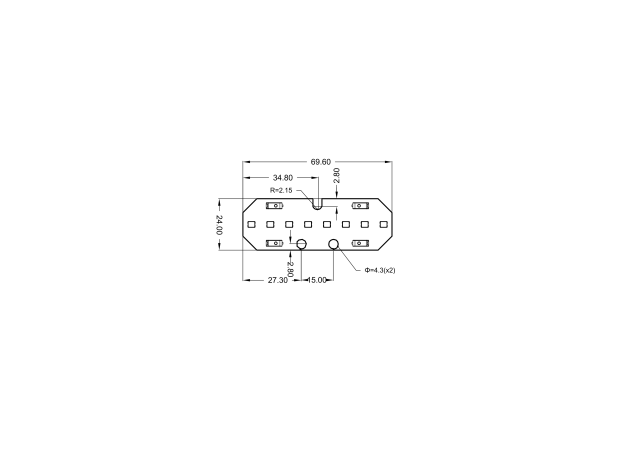

Linear Led Module 0,25 feet 70x24mm 12V
Linear Led Module 0,25 feet 70x24mm 12V
Max efficiency [lm/W] 201 lm/W
Voltage [Vf] 3 V
Length [mm] 70 mm
Width [mm] 24 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

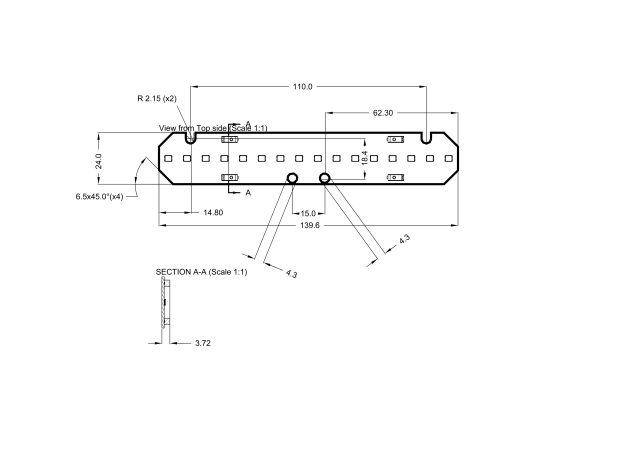

Linear Led Module 0,5 feet 140x24mm 12V
Linear Led Module 0,5 feet 140x24mm 12V
Max efficiency [lm/W] 201 lm/W
Voltage [Vf] 6 V
Length [mm] 140 mm
Width [mm] 24 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

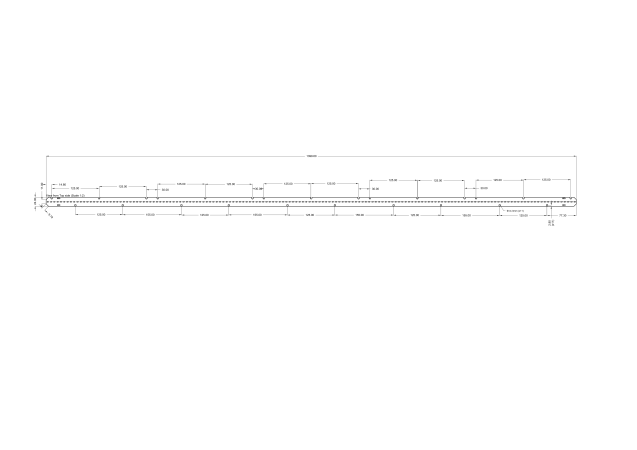

Linear Led Module 2,5 feet 1400x24mm 12V
Linear Led Module 2,5 feet 1400x24mm 12V
Max efficiency [lm/W] 201 lm/W
Voltage [Vf] 60 V
Length [mm] 1400 mm
Width [mm] 24 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14
Linear Led Module 1 feet 280x20mm 24V
Linear Led Module 1 feet 280x20mm 24V
Max efficiency [lm/W] 201 lm/W
Voltage [Vf] 24 V
Length [mm] 280 mm
Width [mm] 20 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

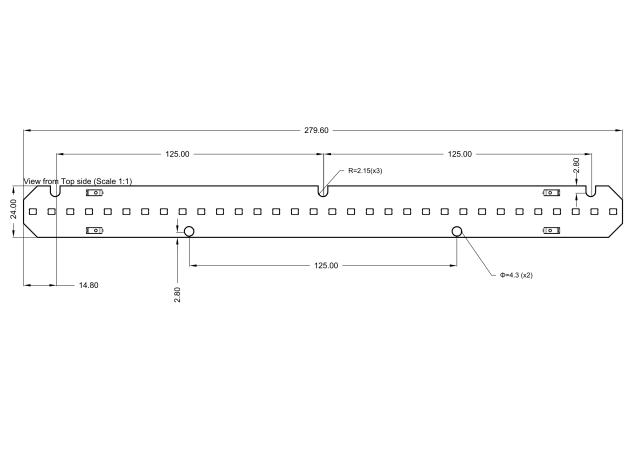

Linear Led Module 1 feet 280x24mm 12V
Linear Led Module 1 feet 280x24mm 12V
Max efficiency [lm/W] 201 lm/W
Voltage [Vf] 12 V
Length [mm] 280 mm
Width [mm] 24 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

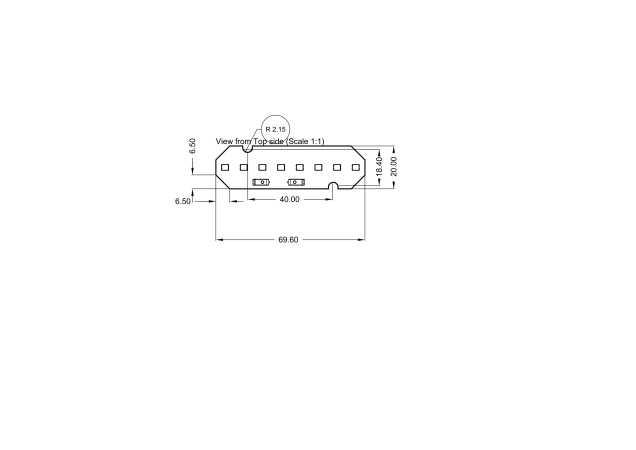

Linear Led Module 0,25 feet 70x20mm 24V
Linear Led Module 0,25 feet 70x20mm 24V
Max efficiency [lm/W] 201 lm/W
Voltage [Vf] 6 V
Length [mm] 70 mm
Width [mm] 20 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

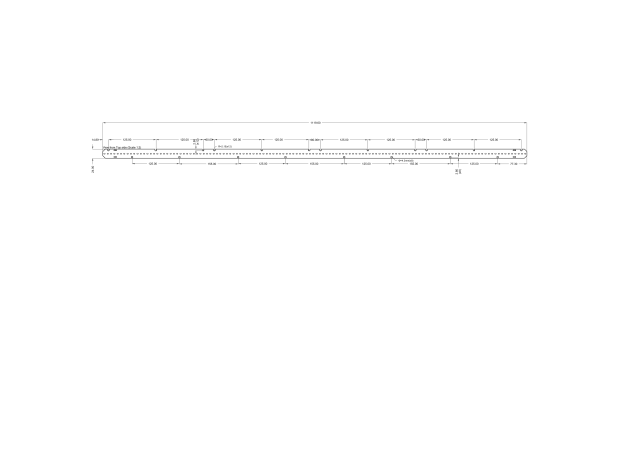

Linear Led Module 4 feet 1120x24mm 12V
Linear Led Module 4 feet 1120x24mm 12V
Max efficiency [lm/W] 201 lm/W
Voltage [Vf] 48 V
Length [mm] 1120 mm
Width [mm] 24 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

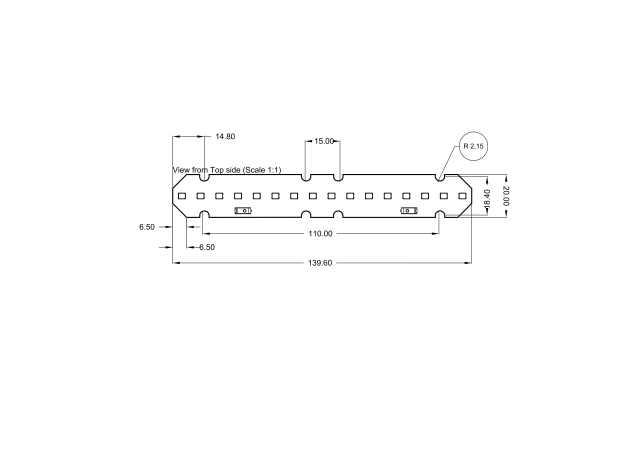

Linear Led Module 0,5 feet 140x20mm 24V
Linear Led Module 0,5 feet 140x20mm 24V
Max efficiency [lm/W] 201 lm/W
Voltage [Vf] 12 V
Length [mm] 140 mm
Width [mm] 20 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

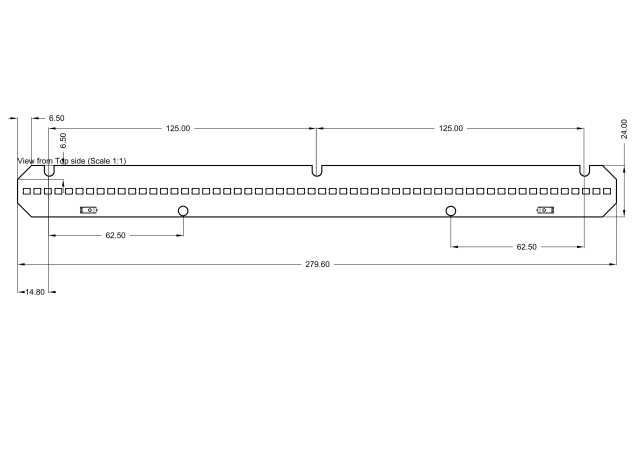

Linear Led Module 1 feet 280x24mm 42V
Linear Led Module 1 feet 280x24mm 42V
Max efficiency [lm/W] 201 lm/W
Voltage [Vf] 42 V
Length [mm] 280 mm
Width [mm] 24 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

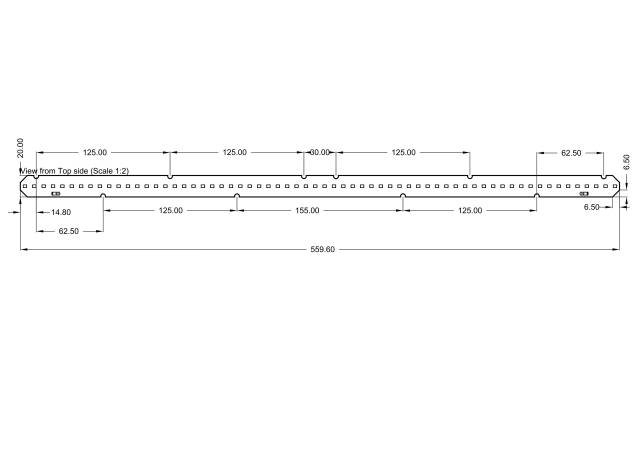

Linear Led Module 2 feet 560x20mm 24V
Linear Led Module 2 feet 560x20mm 24V
Max efficiency [lm/W] 201 lm/W
Voltage [Vf] 48 V
Length [mm] 560 mm
Width [mm] 20 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

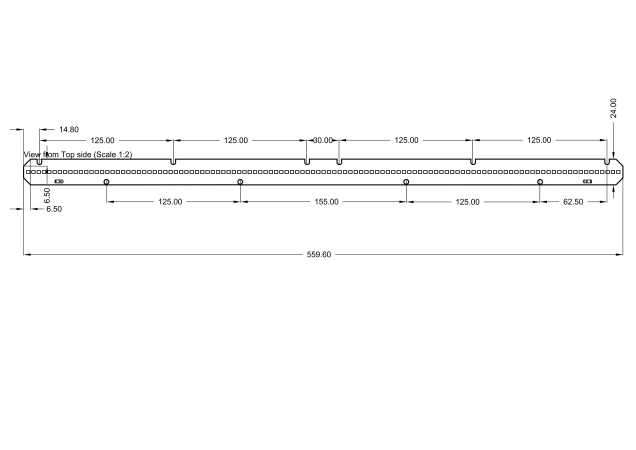

Linear Led Module 2 feet 560x24mm 42V
Linear Led Module 2 feet 560x24mm 42V
Max efficiency [lm/W] 201 lm/W
Voltage [Vf] 84 V
Length [mm] 560 mm
Width [mm] 24 mm
Color temp [K] 2700-6500K
CRI/RA 80/90
PCB Material FR4
Allowed variants: 14

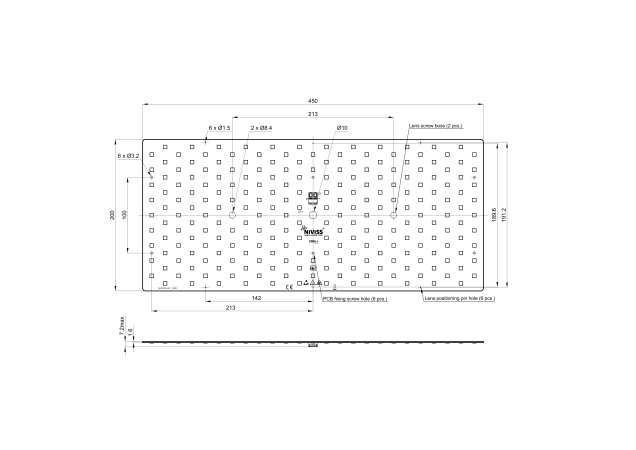

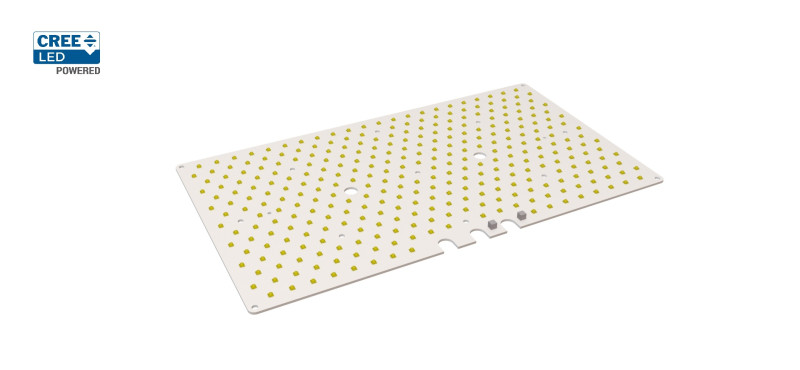

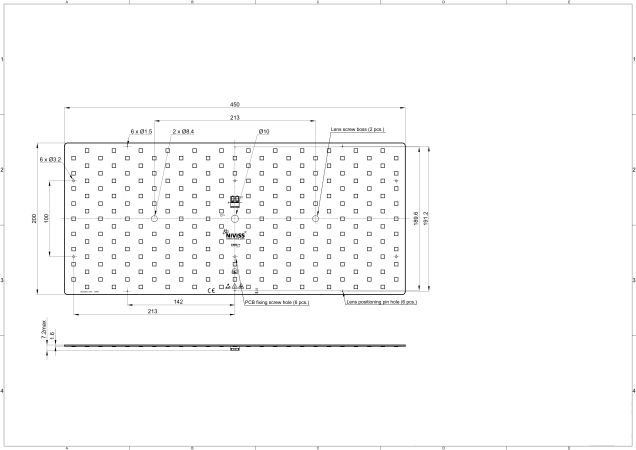

Stadium Led Module CREE J5050E 6V technical-drawing
Stadium Led Module CREE J5050E 6V
Length [mm] 450 mm
PCB Material MCPCB
Allowed variants: 1

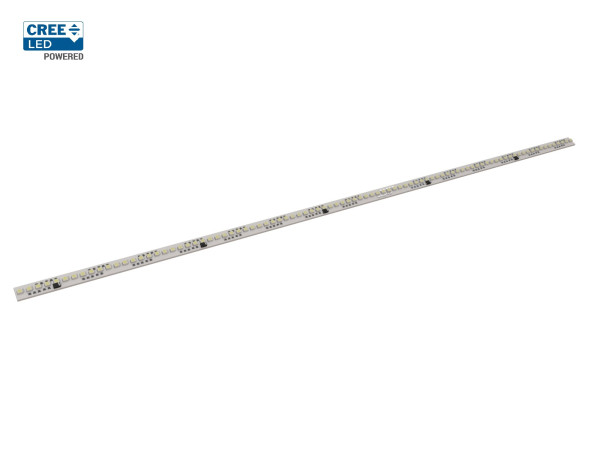

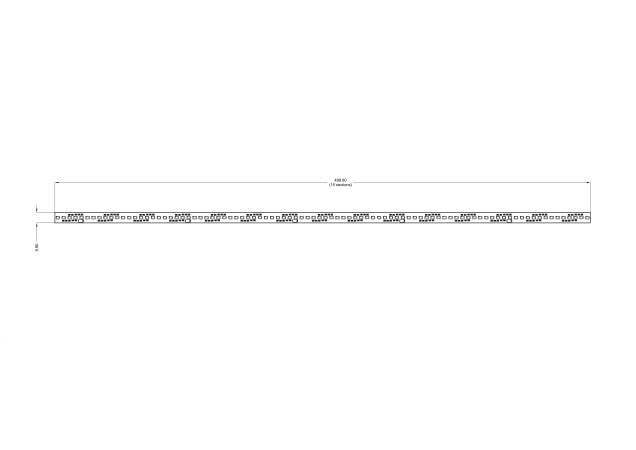

Linear Led Module Strip 12V technical-drawing
Linear Led Module Strip 12V
Length [mm] 500 mm
PCB Material FR4
Allowed variants: 5

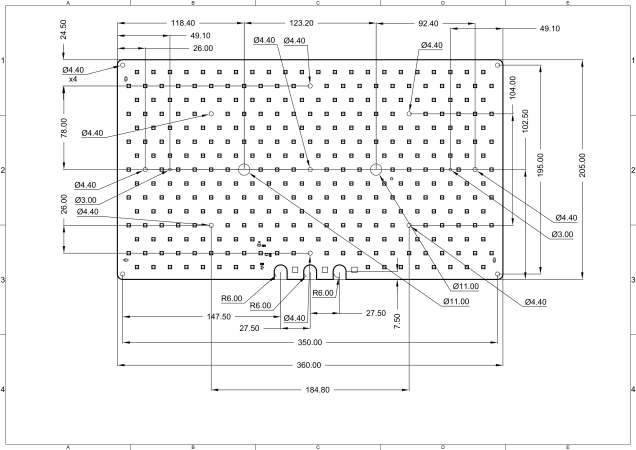

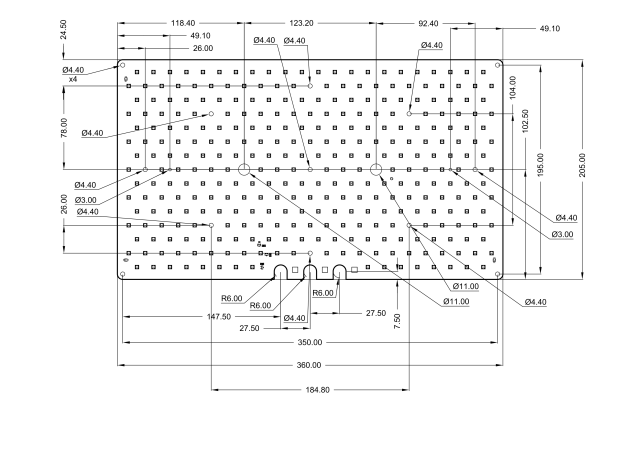

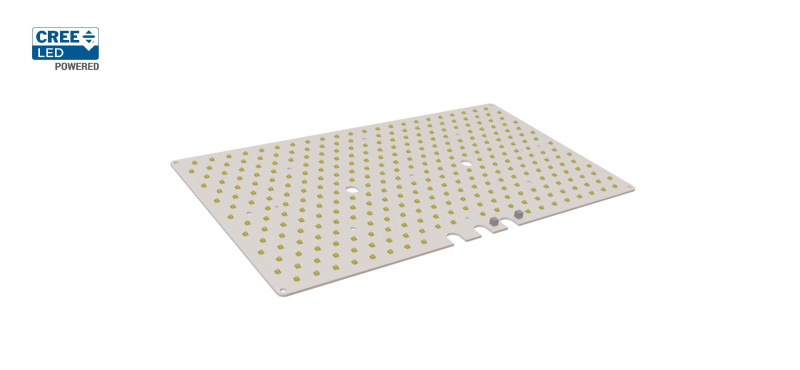

Stadium Led Module CREE XP technical-drawing
Stadium Led Module CREE XP
Length [mm] 360 mm
PCB Material MCPCB
Allowed variants: 2

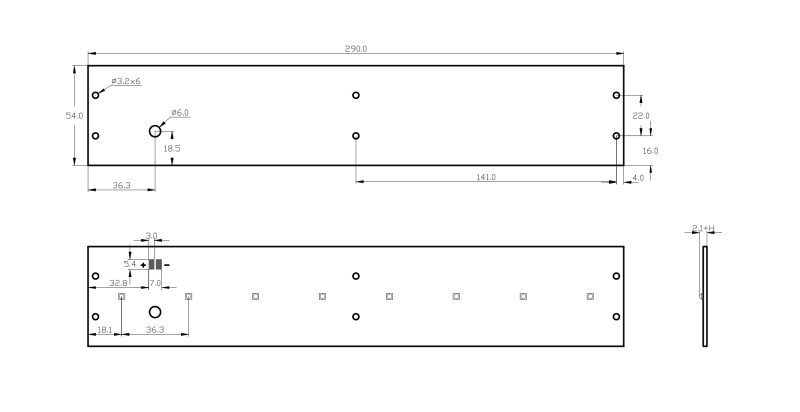

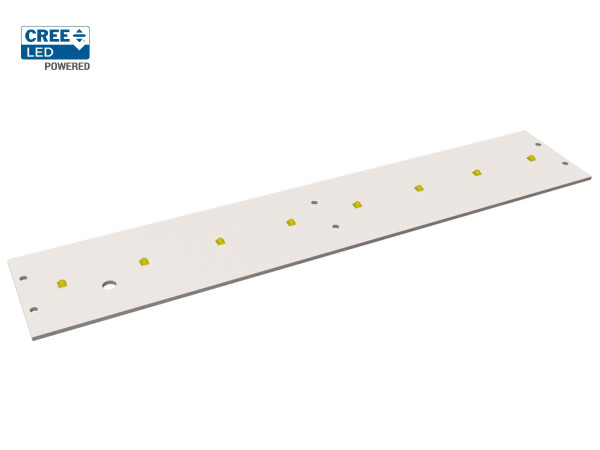

Led Module 8x CREE XP technical-drawing
Led Module 8x CREE XP
Length [mm] 290 mm
Width [mm] 54 mm
PCB Material MCPCB
Allowed variants: 3
