Ground Medium Premium 220-240V AC 50/60Hz
GROUND MEDIUM PREMIUM 220-240V AC 50/60Hz

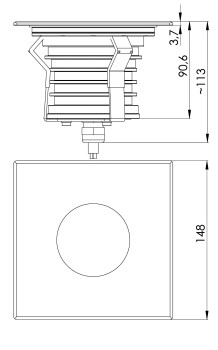

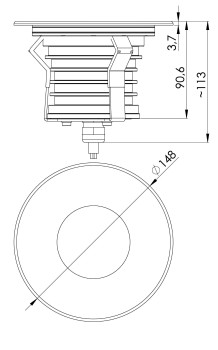

Technical drawings

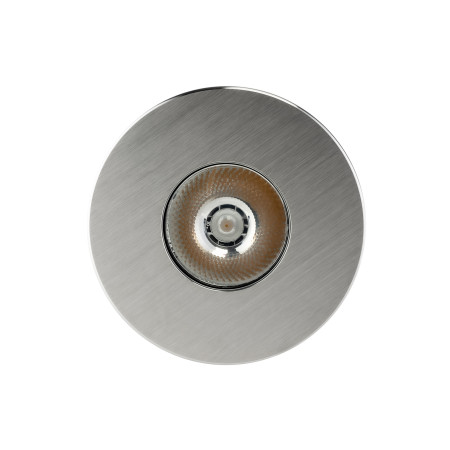

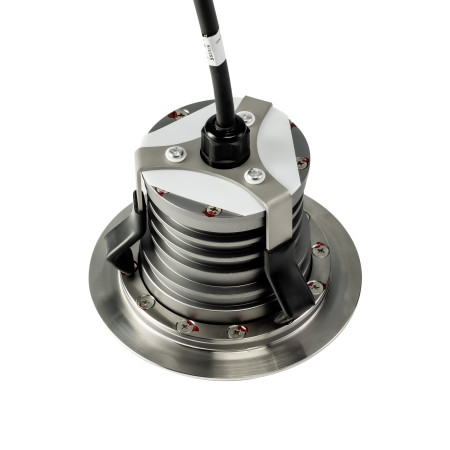

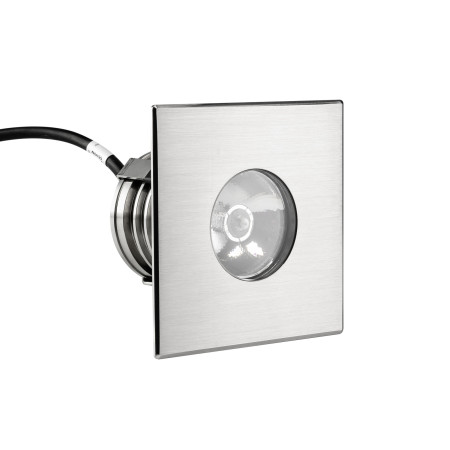

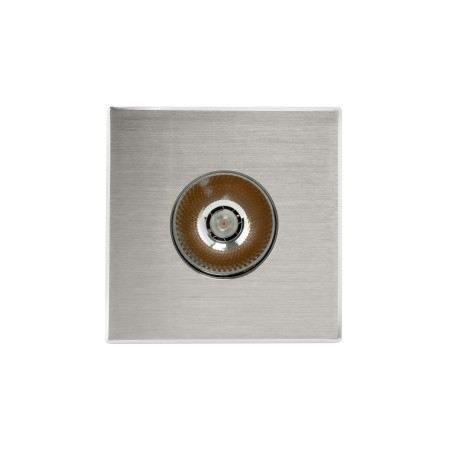

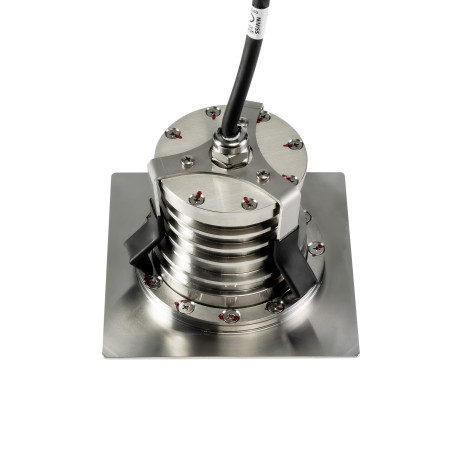

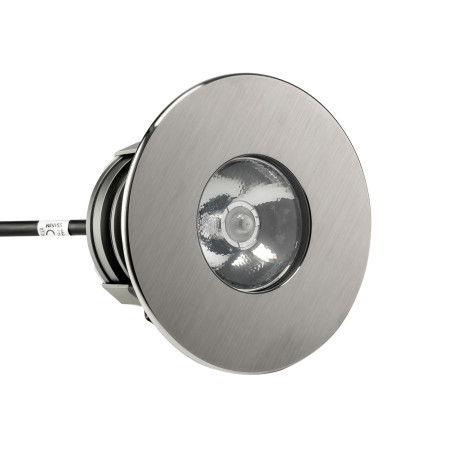

The Ground Medium Premium series of max 20W is designed to achieve the best visual effect by having no screws on the front. They are made of the highest quality materials such as marine steel, high purity glass and modern CREE LEDs. Niviss Ground Medium Premium fixture can be used to illuminate a wide range of places and facilities, such as parks, gardens, terraces, squares, premises.
| Housing | SS316LAluminum |
|---|---|
| Glass type | Tempered |
| Working temperature range | -20˚C ÷ +55˚C |
| IP protection class | IP67 |
| Lifetime L80B10 | ≥ 60 000h |
| Impact resistance | IK10 |
| Protection class | I |
| Connection | 0.5m |
| Wiring | H07RN-F 3G1 |
| Dimming | ON-OFF |
| Light emission | direct |
| Colour rendering index | ≥80 |
| SDCM colour tolerance | <3 |
| Luminous flux tolerance | ±10% |
| Power supplies | inside the luminaire |
| Light distribution | symmetrical |
| Nominal voltage [V] | 220-240V AC 50/60Hz |
| Rated power [W] | 20 |
| Light source | LED |
| Angle of distribution | 10˚, 20˚, 30˚, 45˚ |
